1JO9-OG 90° Elbow — Male JIC 74° Cone × Male SAE O-Ring Boss (ORB) Adapter

Product:

1JO9-OG 90° Elbow — Male JIC 74° Cone × Male SAE O-Ring Boss (ORB) Adapter

Description:

Commonlysupplied carbon steel/galvanized surface, stainless stee!
SAE J514/ISO 8434-2 standard connector
Fluororubber seals available

Consult Now

+86 0551-67291852

Product Details

Commonlysupplied carbon steel/galvanized surface, stainless stee!

SAE J514/ISO 8434-2 standard connector

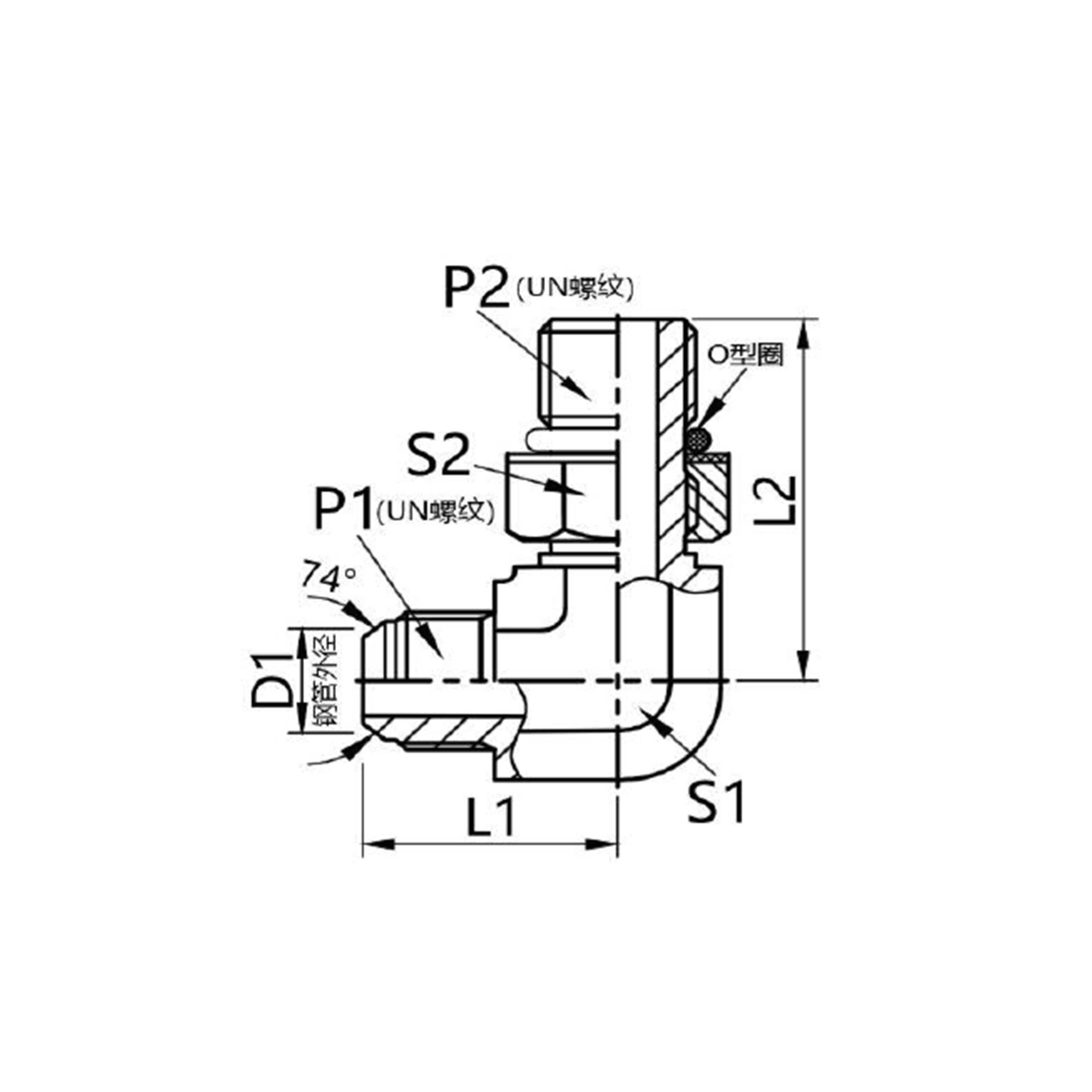

Fluororubber seals available 1JO9-OG American Jlc external thread 74°external cone /SAE external thread o-ring 90°elbow(图1) 1JO9-OG.pdf
