GMV Series Diaphragm Valve 3000PSI

Product:

GMV Series Diaphragm Valve 3000PSI

Description:

● PUsed for quick cutof or switching of fluid pipelines;
● Maximum working pressure 3000psig (207bar);
● Working temperature -20'C~200 C;
● Stainless steel material is suitable for corrosive gases;
● Applicable to oxygen;
● Widely used in various fluid system fields;
● Provide standard 1/4" NPT internal thread interface;

Consult Now

+86 0551-67291852

Product Details

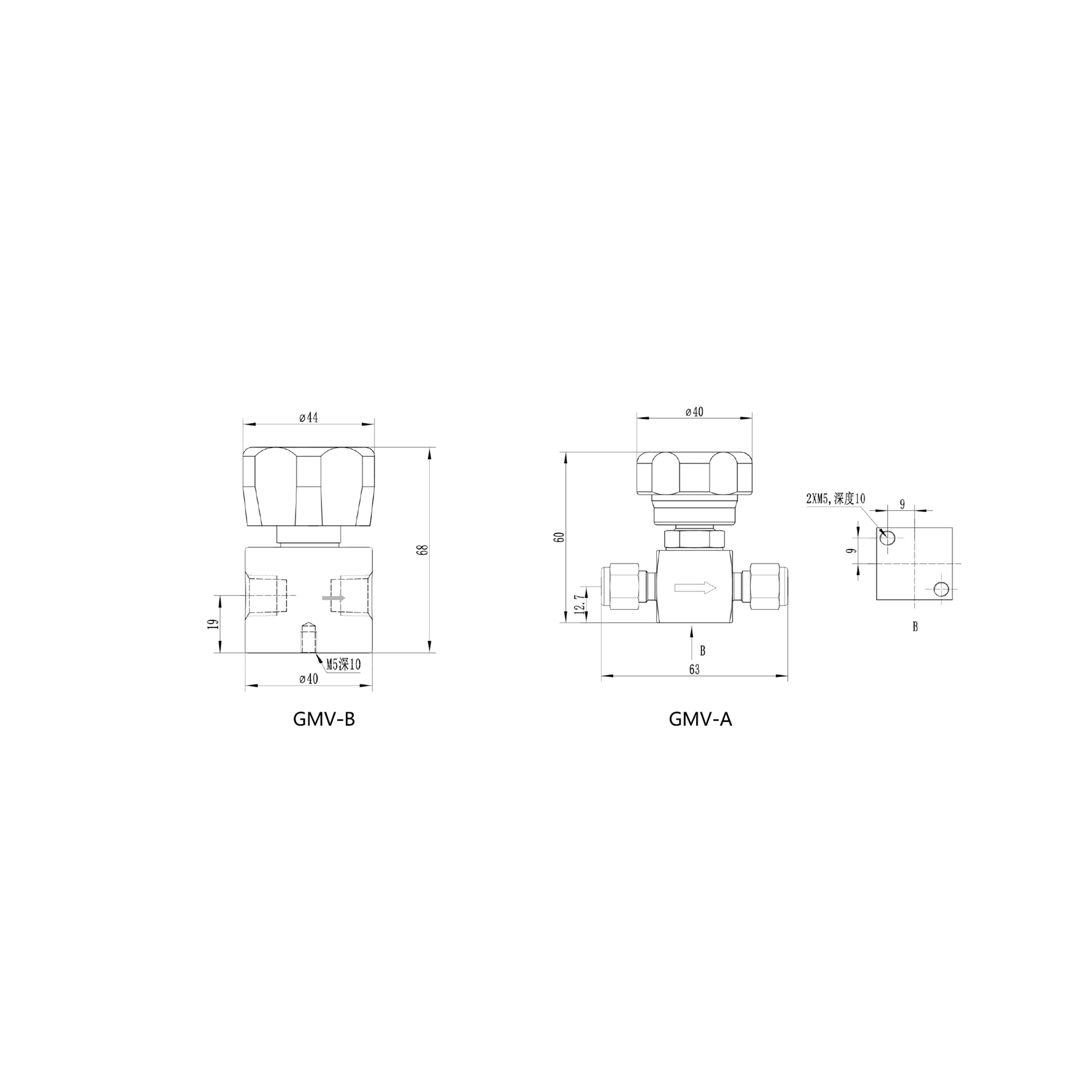

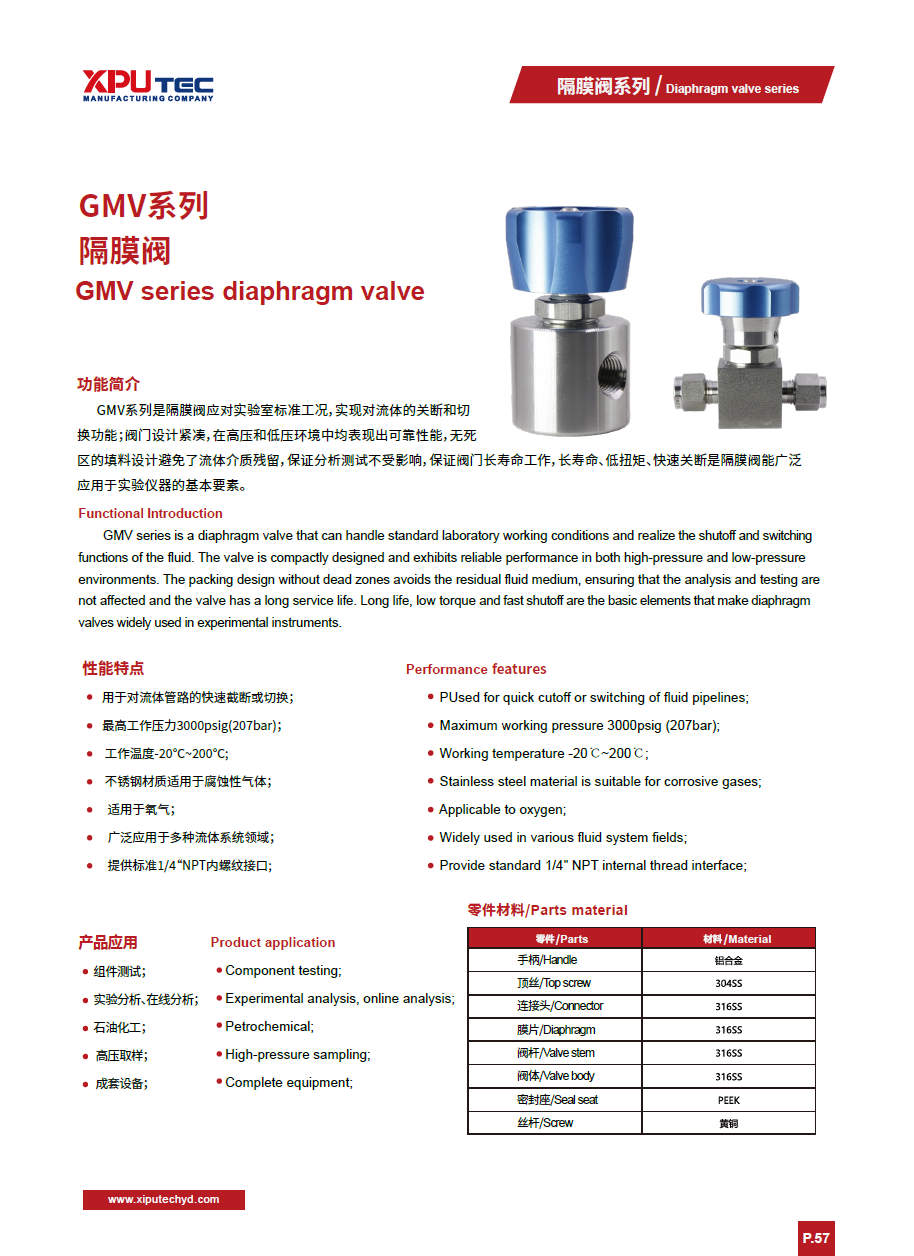

GMV series diaphragm valve(图1) GMV.pdf
