21KB AW/AD Pneumatic Quick Coupling (Female Coupler)

Product:

21KB AW/AD Pneumatic Quick Coupling (Female Coupler)

Description:

Orifice 5=20mm²
Commonlyusedin small pneumatic, medical, chemical and
pharmaceuticalindustries
Working pressure PB=35bar
Applicable temperature:
-20°C~+100'C(NBR)
-40°C~+120°C (EPDM)
-15°C~+200°C (FKM)

Consult Now

+86 0551-67291852

Product Details

Orifice 5=20mm²

Commonlyusedin small pneumatic, medical, chemical and

pharmaceuticalindustries

Working pressure PB=35bar

Applicable temperature:

-20°C~+100'C(NBR)

-40°C~+120°C (EPDM)

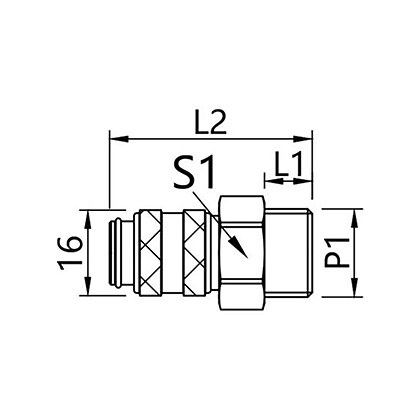

-15°C~+200°C (FKM) 21KB AW/AD Pneumatic quick change-female(图1) 21KB AWAD.pdf
