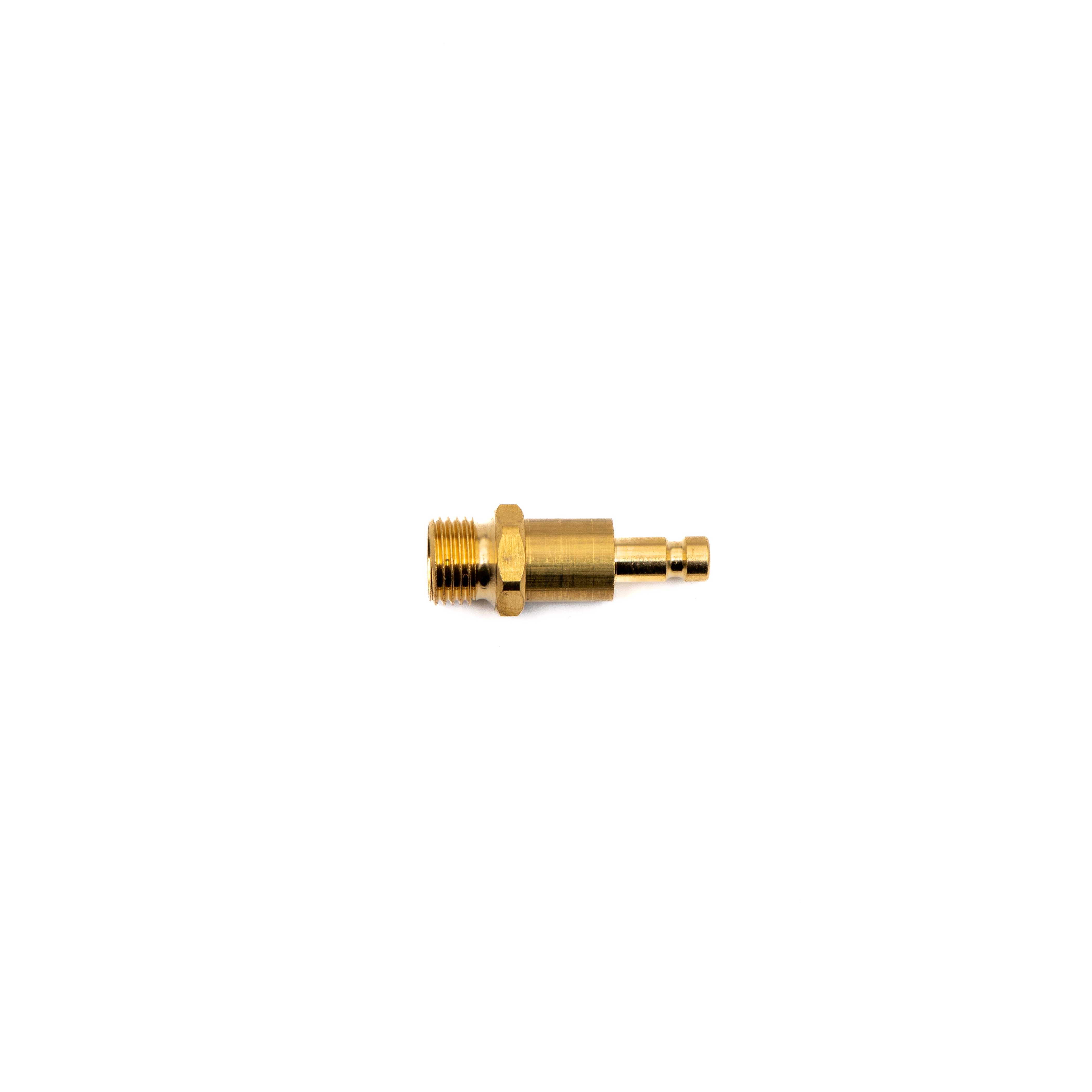

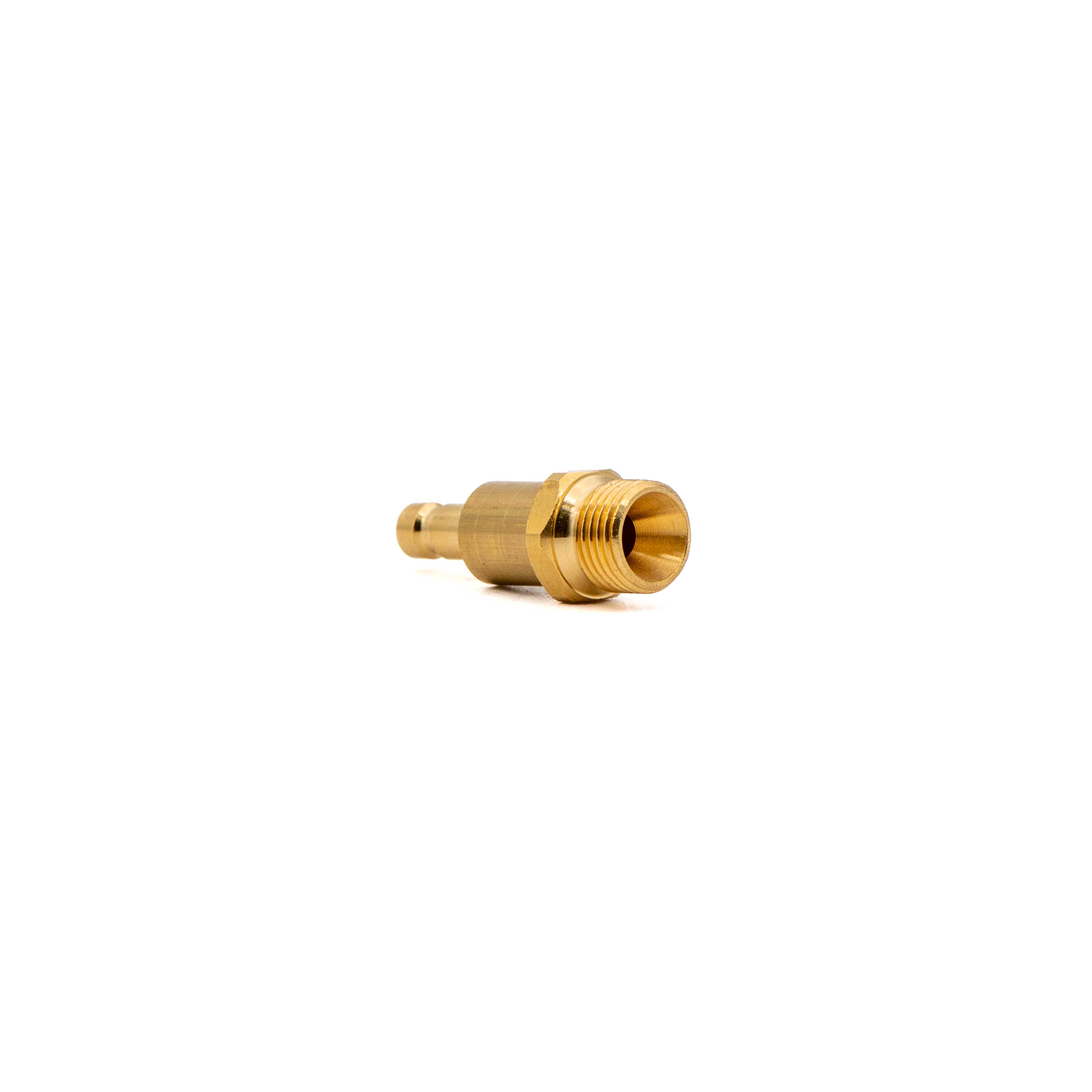

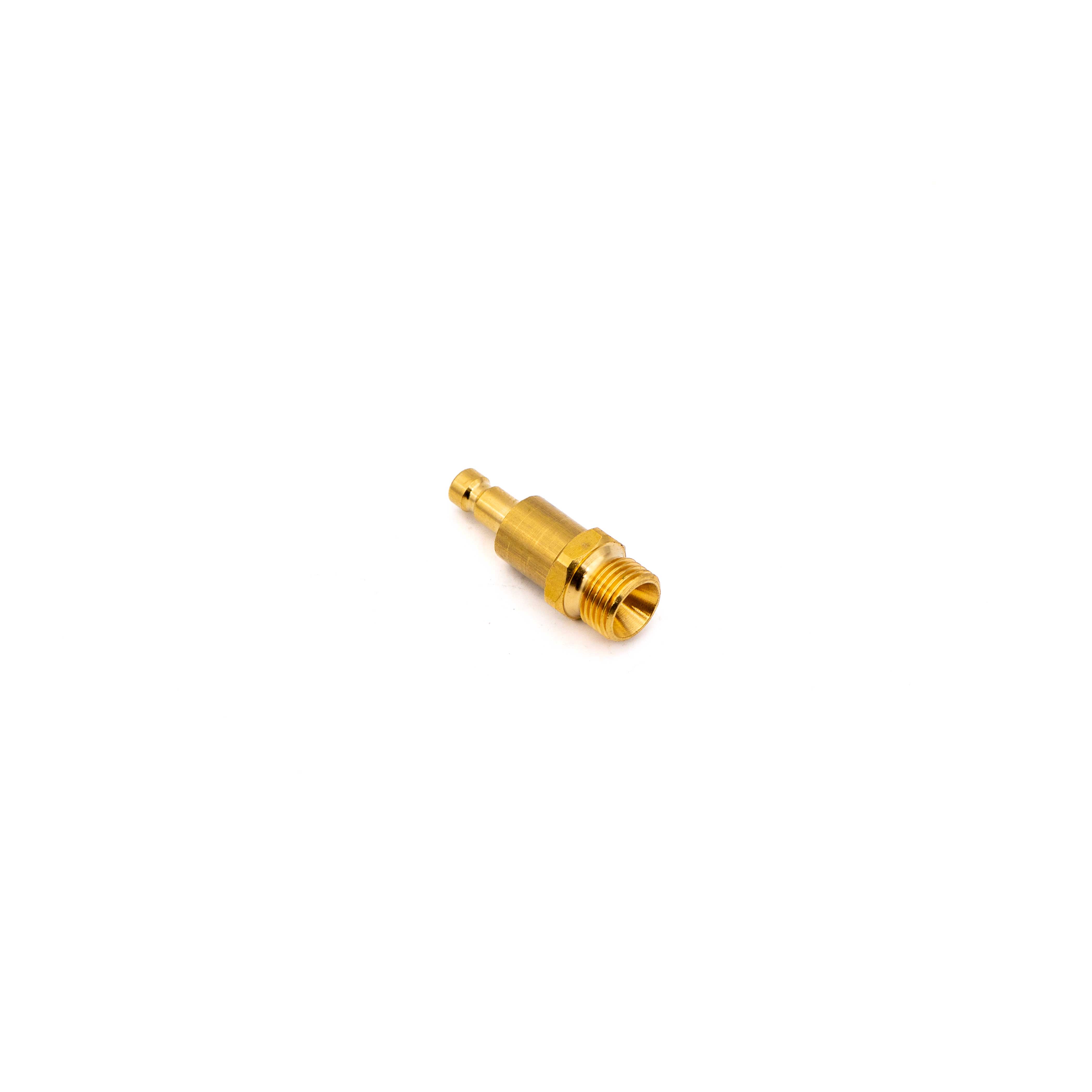

20SB AW Pneumatic Quick Coupling (Male Coupler )

Product:

20SB AW Pneumatic Quick Coupling (Male Coupler )

Description:

Orifice 2,7=5mm²
Commonly used in small pneumatic, medical, chemical and
pharmaceuticalindustries
Working pressure PB=35bar
Applicable temperature:
-20°C~+100'C(NBR)
-40'C~+120°C(EPDM)
-15'C~+200'C (FKM)

Consult Now

+86 0551-67291852

Product Details

Orifice 2,7=5mm²

Commonly used in small pneumatic, medical, chemical and

pharmaceuticalindustries

Working pressure PB=35bar

Applicable temperature:

-20°C~+100'C(NBR)

-40'C~+120°C(EPDM)

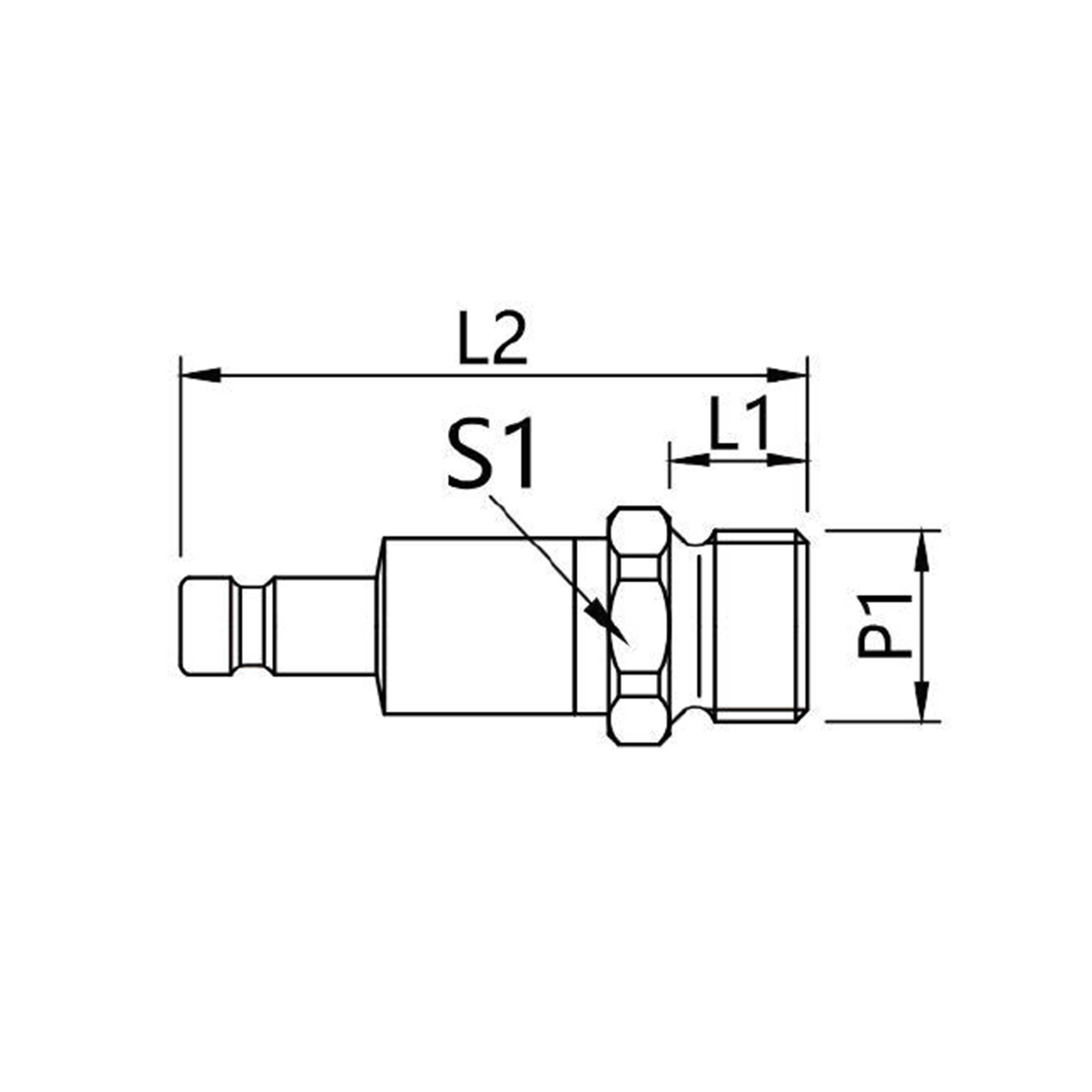

-15'C~+200'C (FKM) 20SB AW Pneumatic quick change-male(图1) 20SB AW.pdf
