T15 Series

Product:

T15 Series

Description:

Working pressures: up to 15,000 psig (1034 bar)

Consult Now

+86 0551-67291852

Product Details

Materials:316/316L,enhanced-316/316L

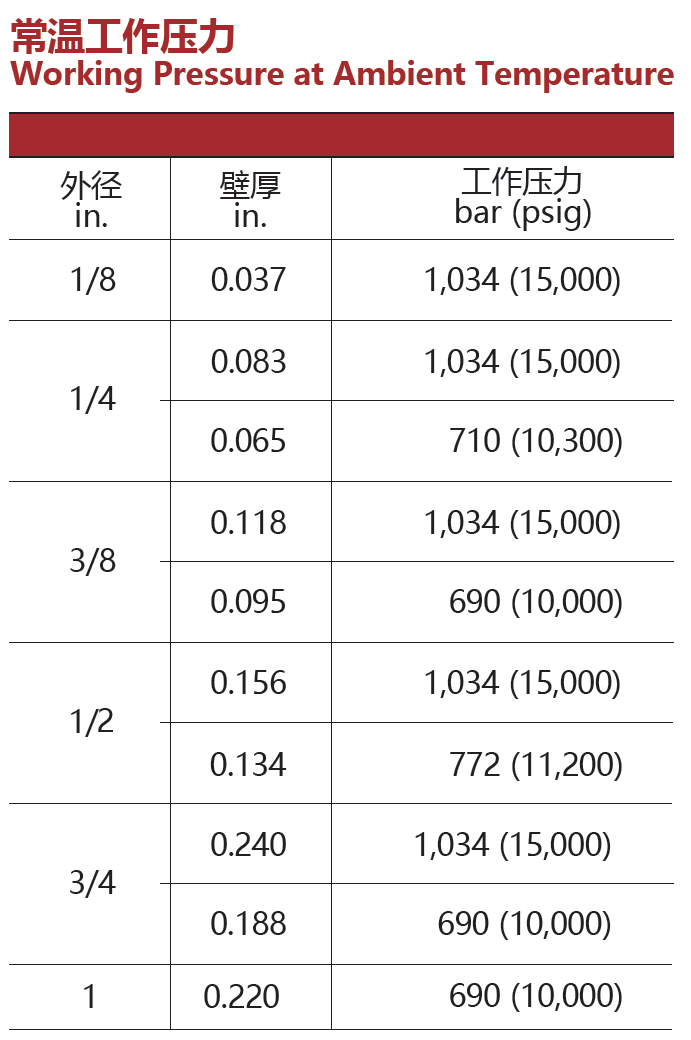

Working pressures: up to 15,000 psig (1034 bar)

Working temperature:-325°F to 1000°F （-198°C to 537°C)

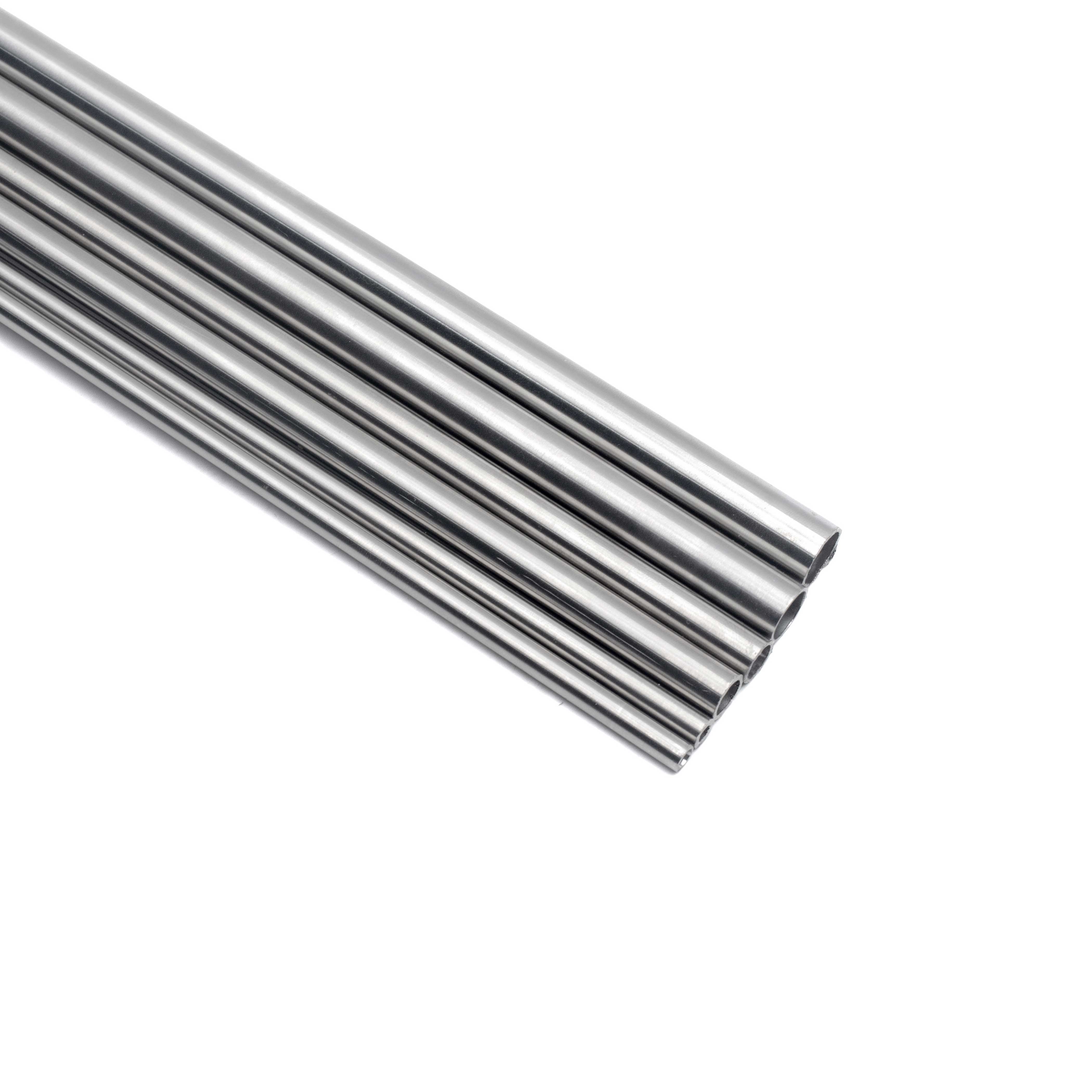

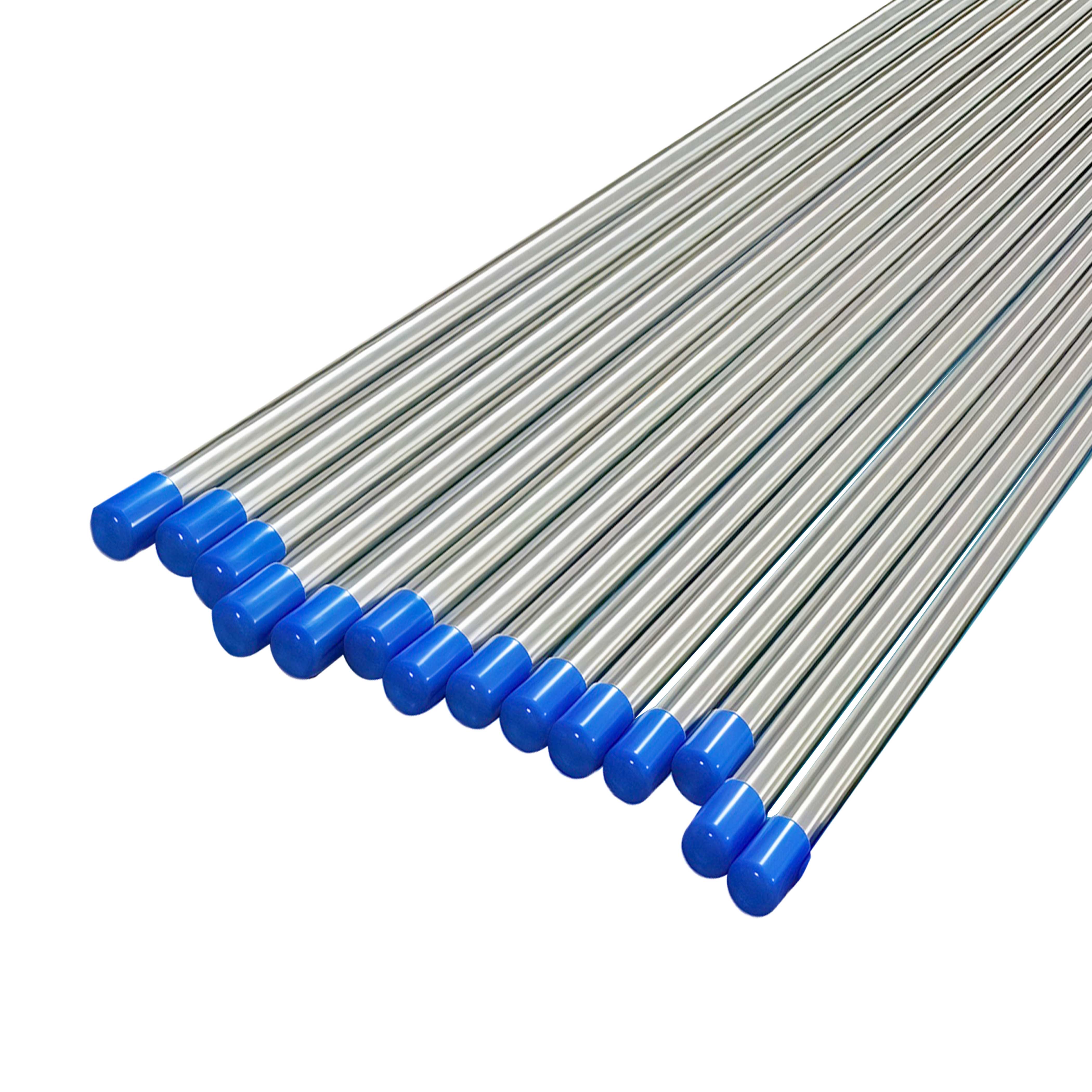

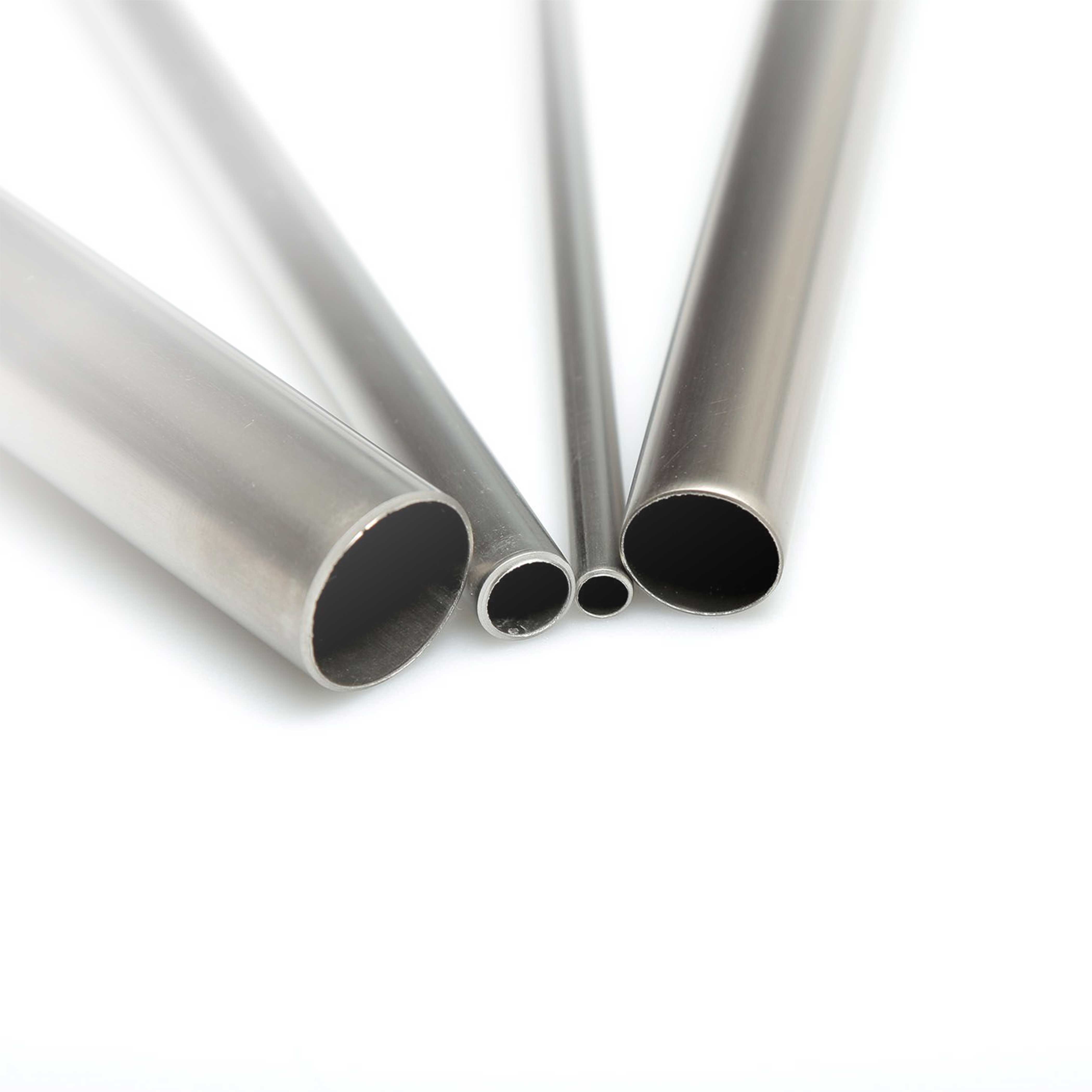

Annealed seamless tubing

Standard length: 40 in, 80 in, 10 ft, 20 ft, 1 m, 2 m, 3 m and 6 m

Customized length as per customer requirement is also available T15 Series(图1) T15 Series.pdf
