T20M Series

Product:

T20M Series

Description:

Working pressure up to 20,0o0 psig (1379 bar)
Cold-drawn seamless tubing

Consult Now

+86 0551-67291852

Product Details

Materials:316/316L,enhanced-316/316L

Working pressure up to 20,0o0 psig (1379 bar)

Working temperature:-325°F to 800°F(-198°C to 427°C)

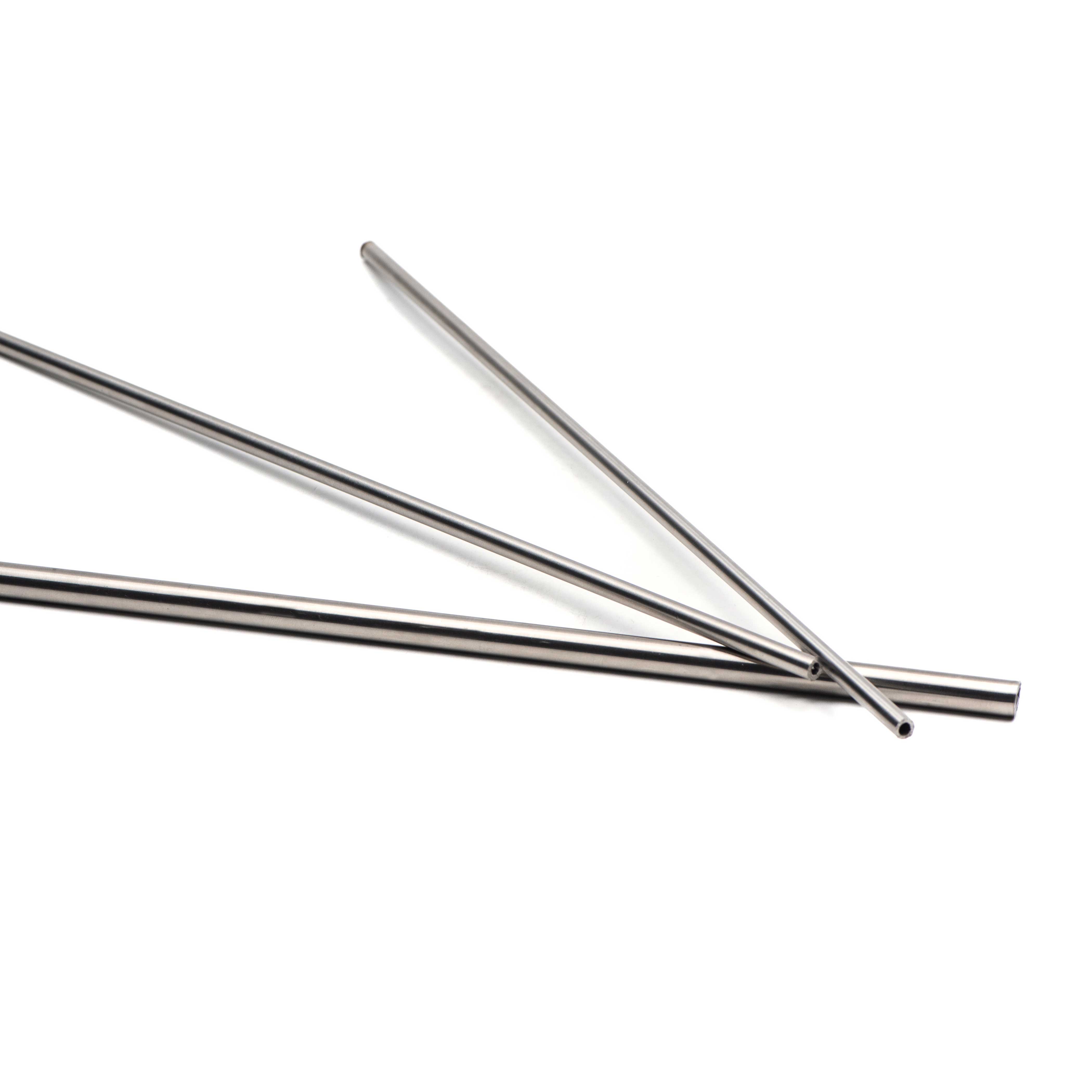

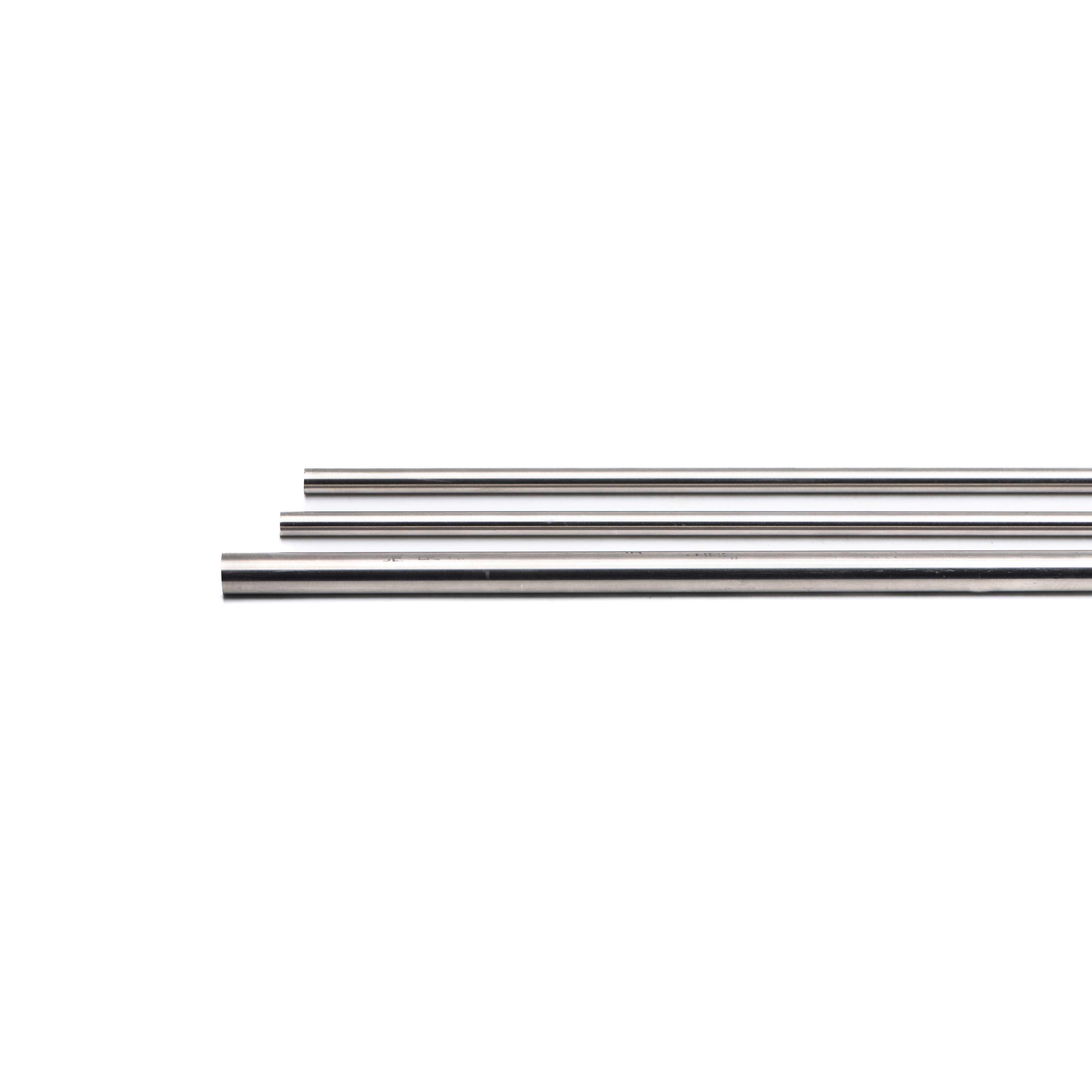

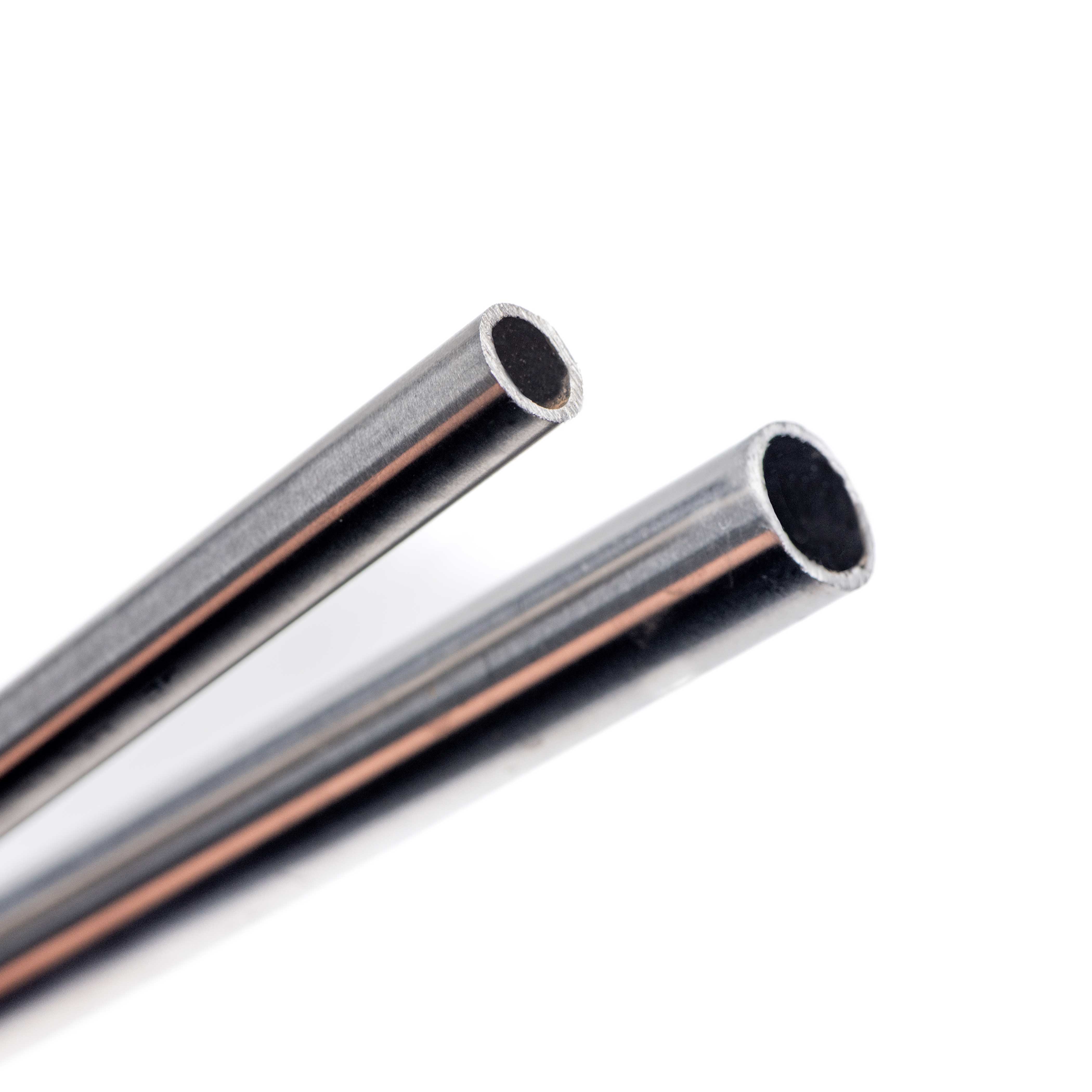

Cold-drawn seamless tubing

Standard length: 40 in, 80 in, 10 ft, 20 ft, 1 m, 2 m, 3 m and 6 m,

Straight-length tubing and coned and threaded nipples in custom

length are also available. T20M Series(图1) T20P Series.pdf
