T20P Series

Product:

T20P Series

Description:

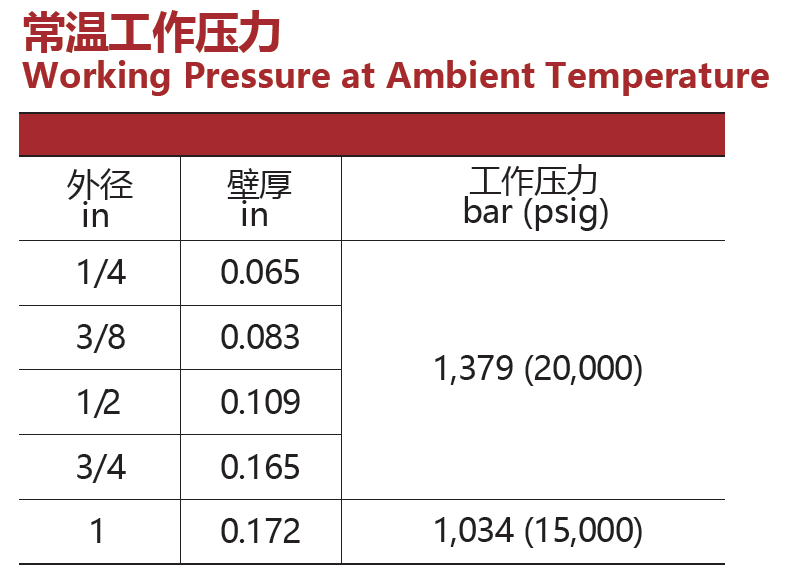

Working pressures: up to 20,000 psig (1379 bar)

Consult Now

+86 0551-67291852

Product Details

Materials:316/316L,enhanced-316/316L

Working pressures: up to 20,000 psig (1379 bar)

Working temperature:-325°F to 800°F(-198°C to 427°C)

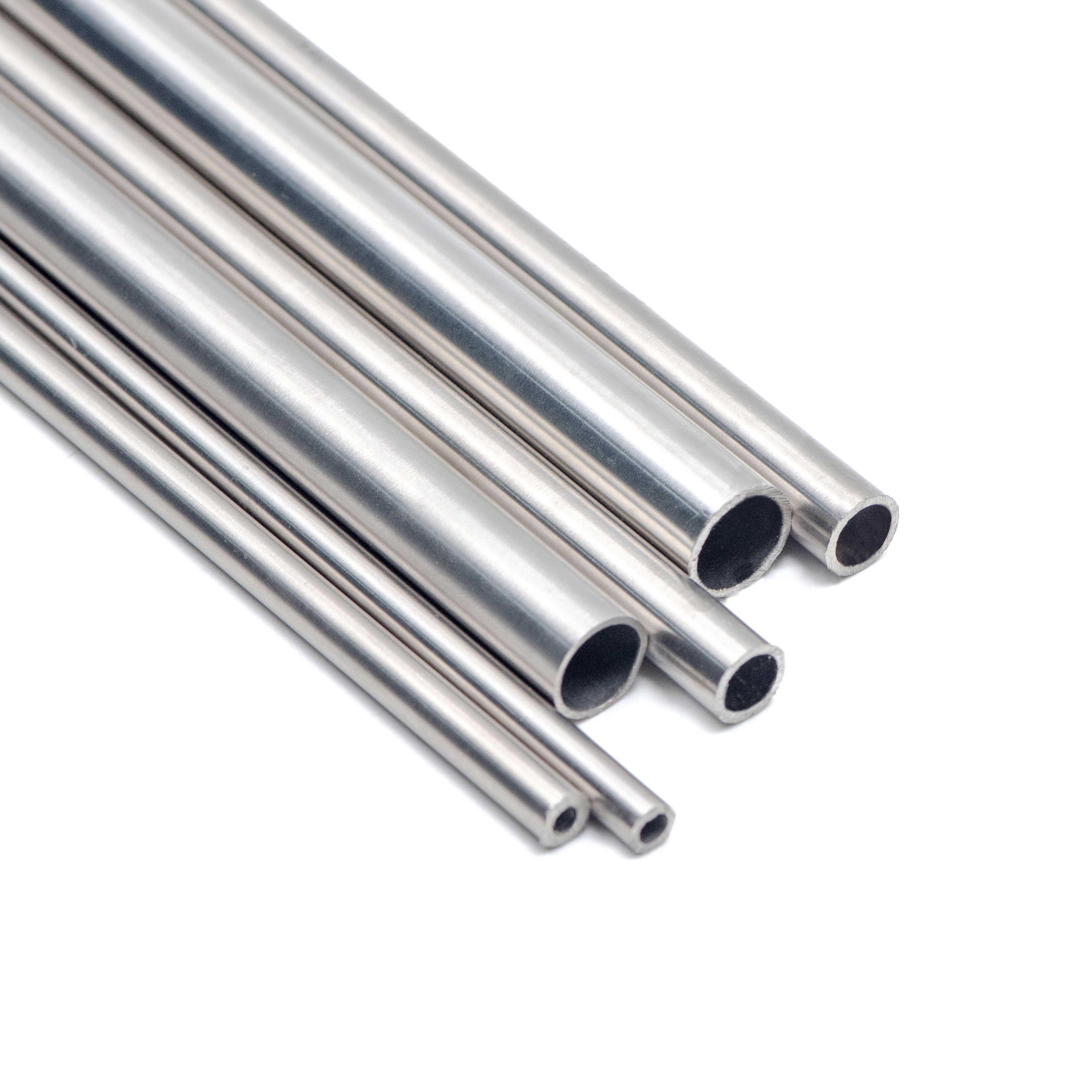

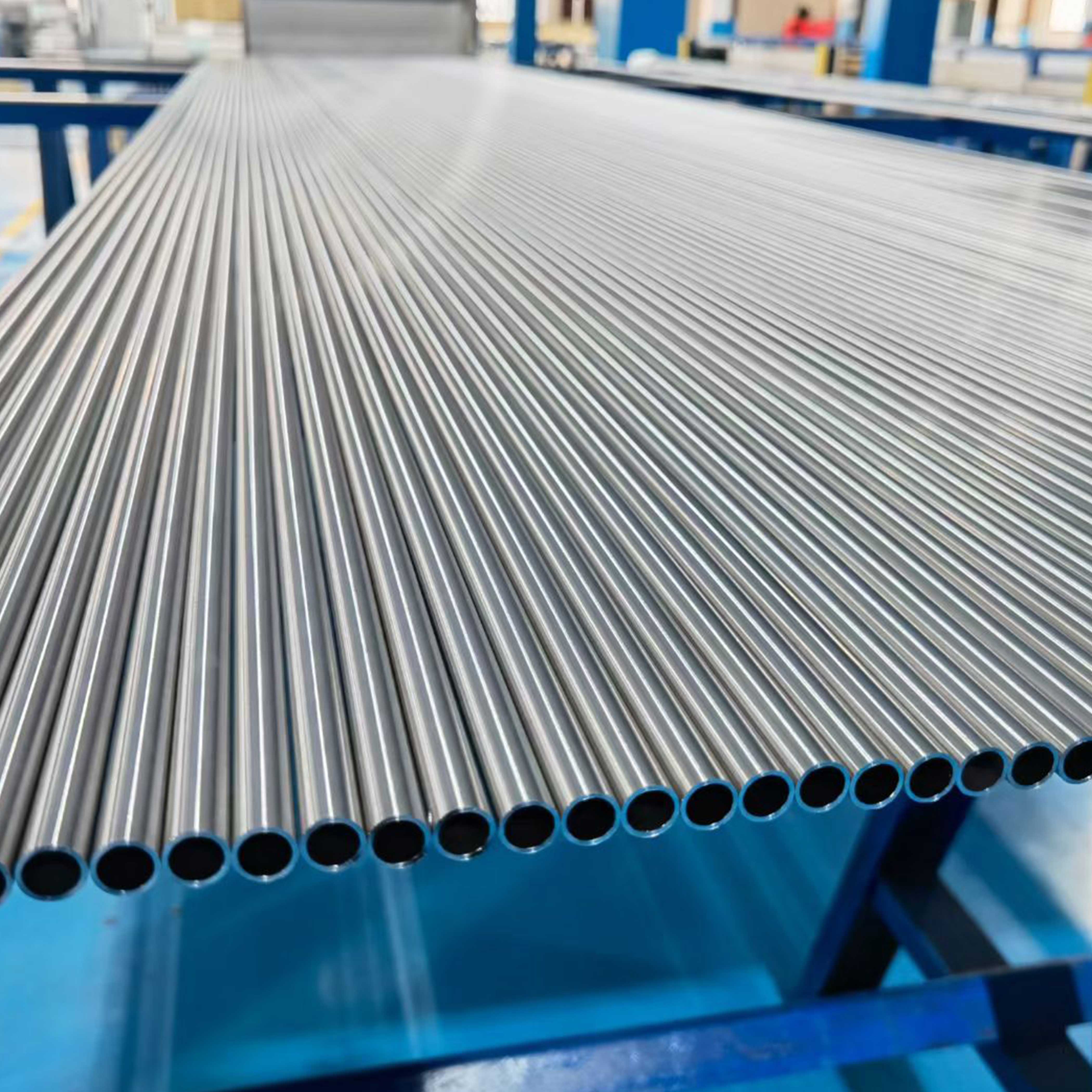

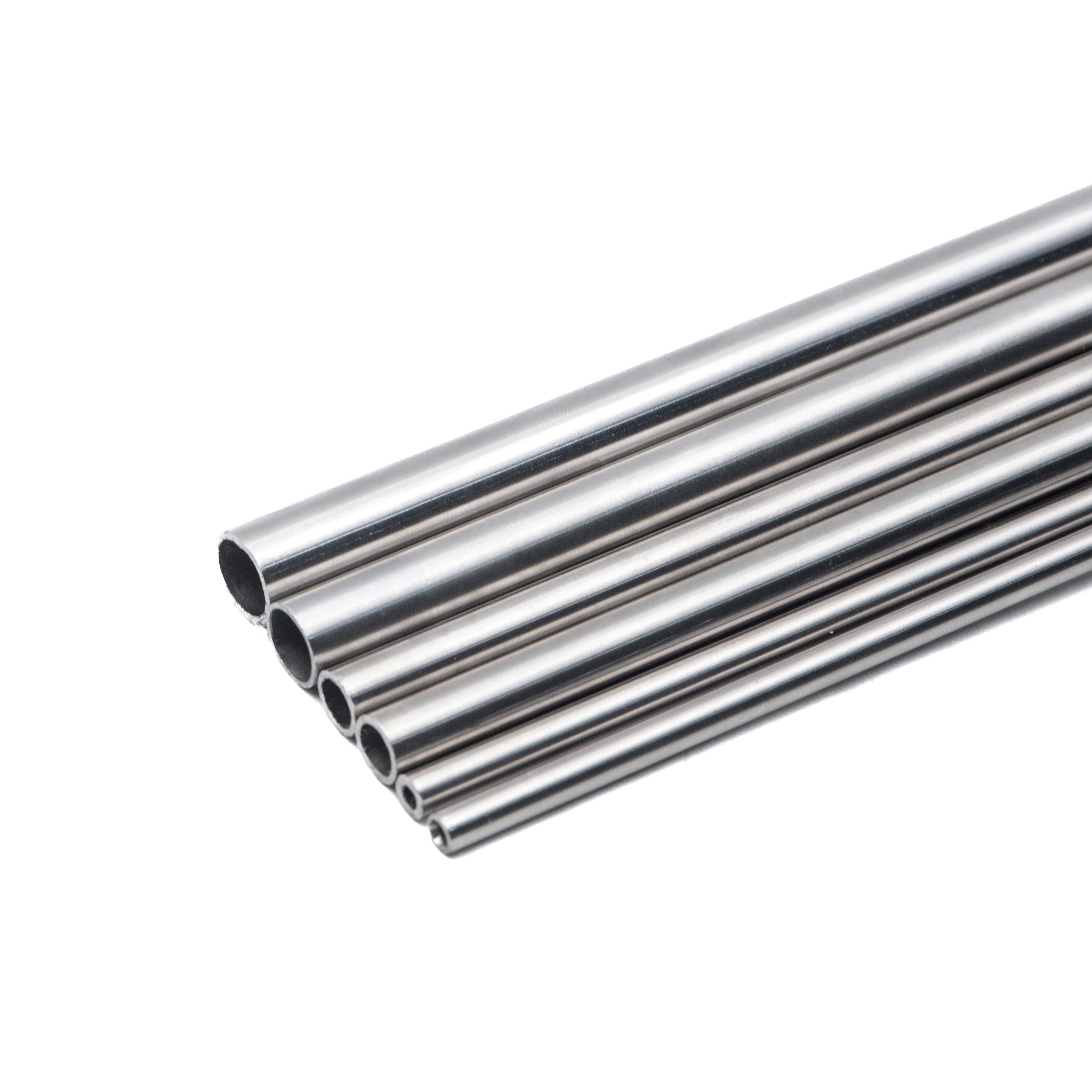

Cold-drawn 1/8-hard seamless tubing

Standard length: 40 in, 80 in, 10 ft, 20 ft, 1 m, 2 m, 3 m and 6 m

Customized length as per customer requirement is also available T20P Series(图1) T20P Series.pdf
