T60H Series

Product:

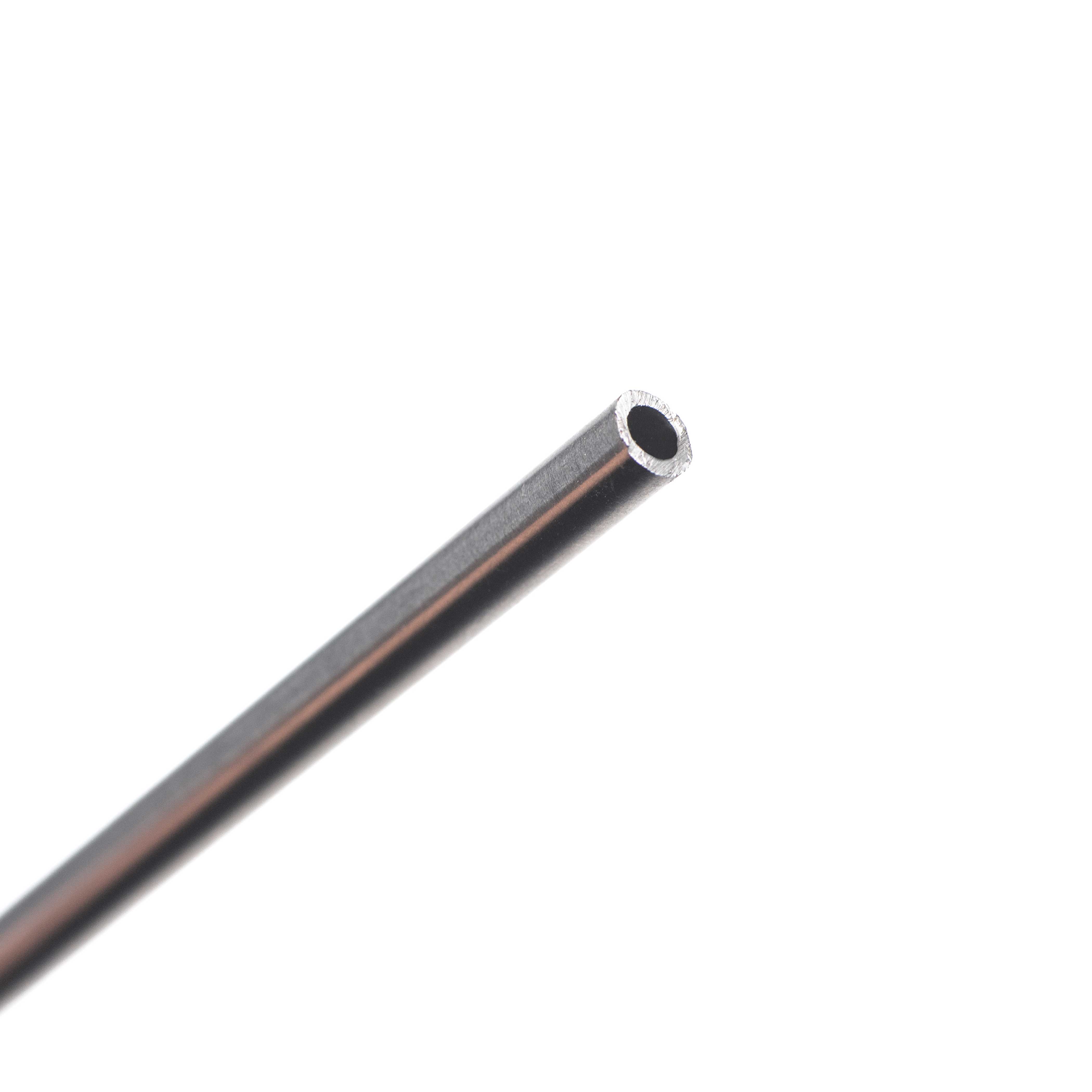

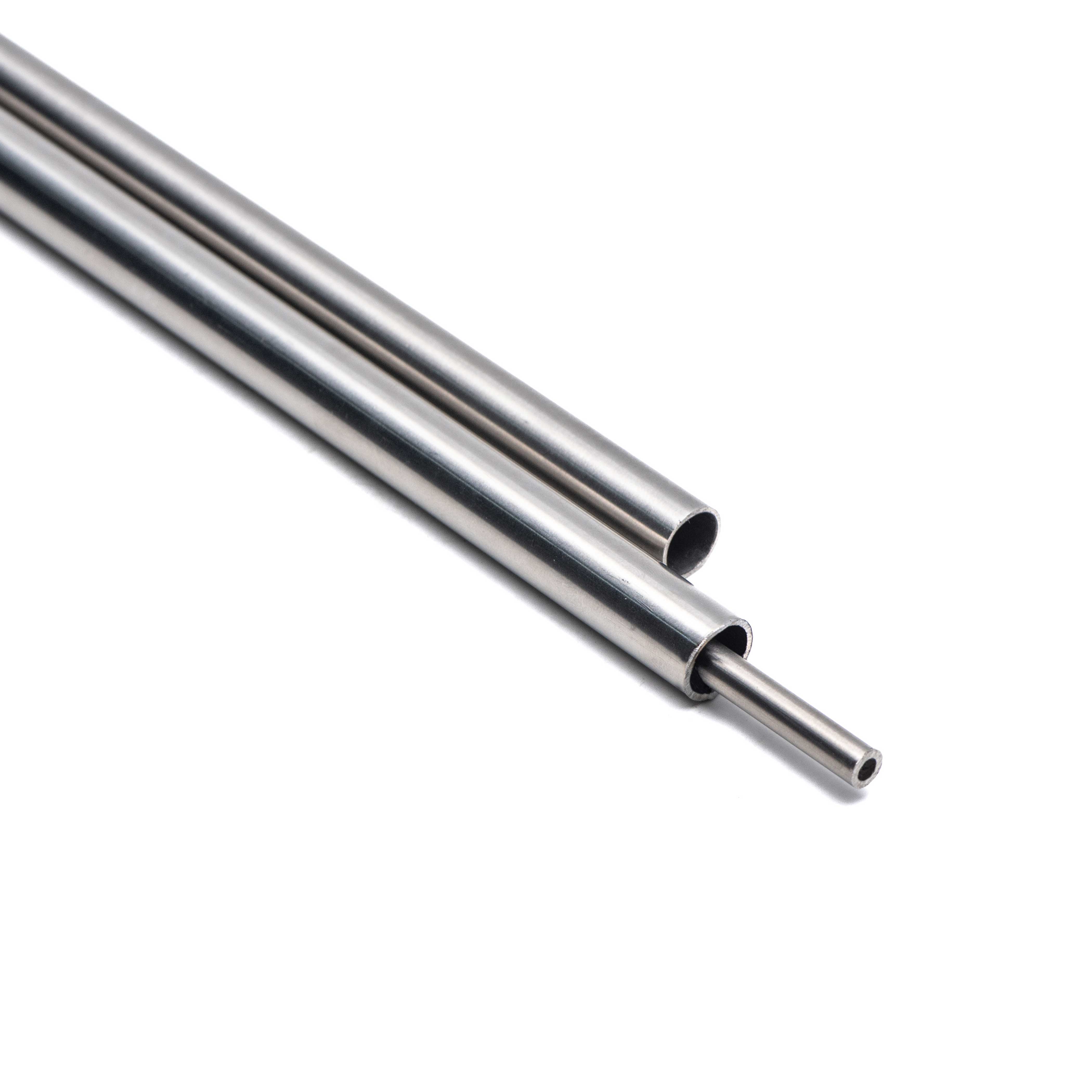

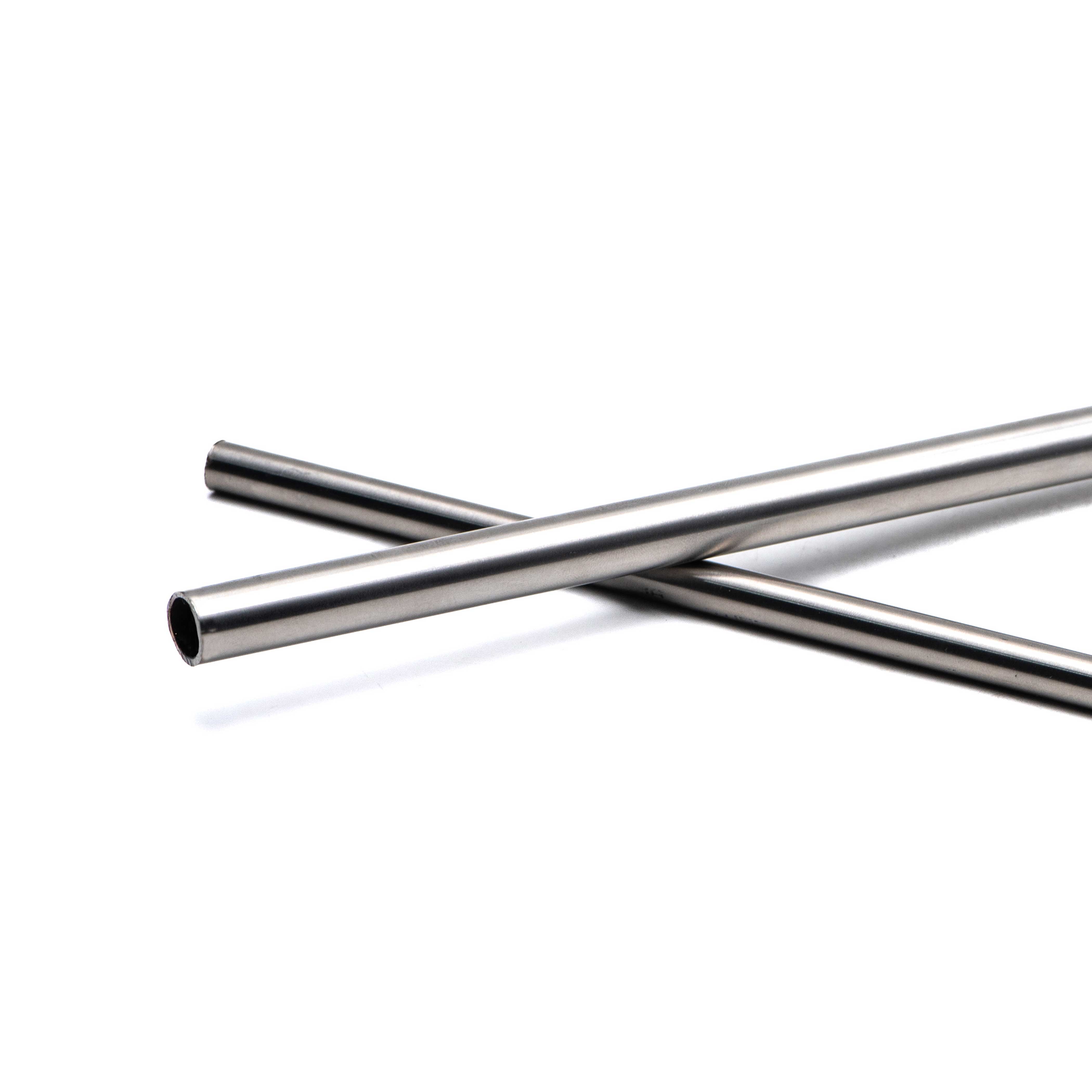

T60H Series

Description:

Working pressure up to 60,000 psig (4137 bar)

Consult Now

+86 0551-67291852

Product Details

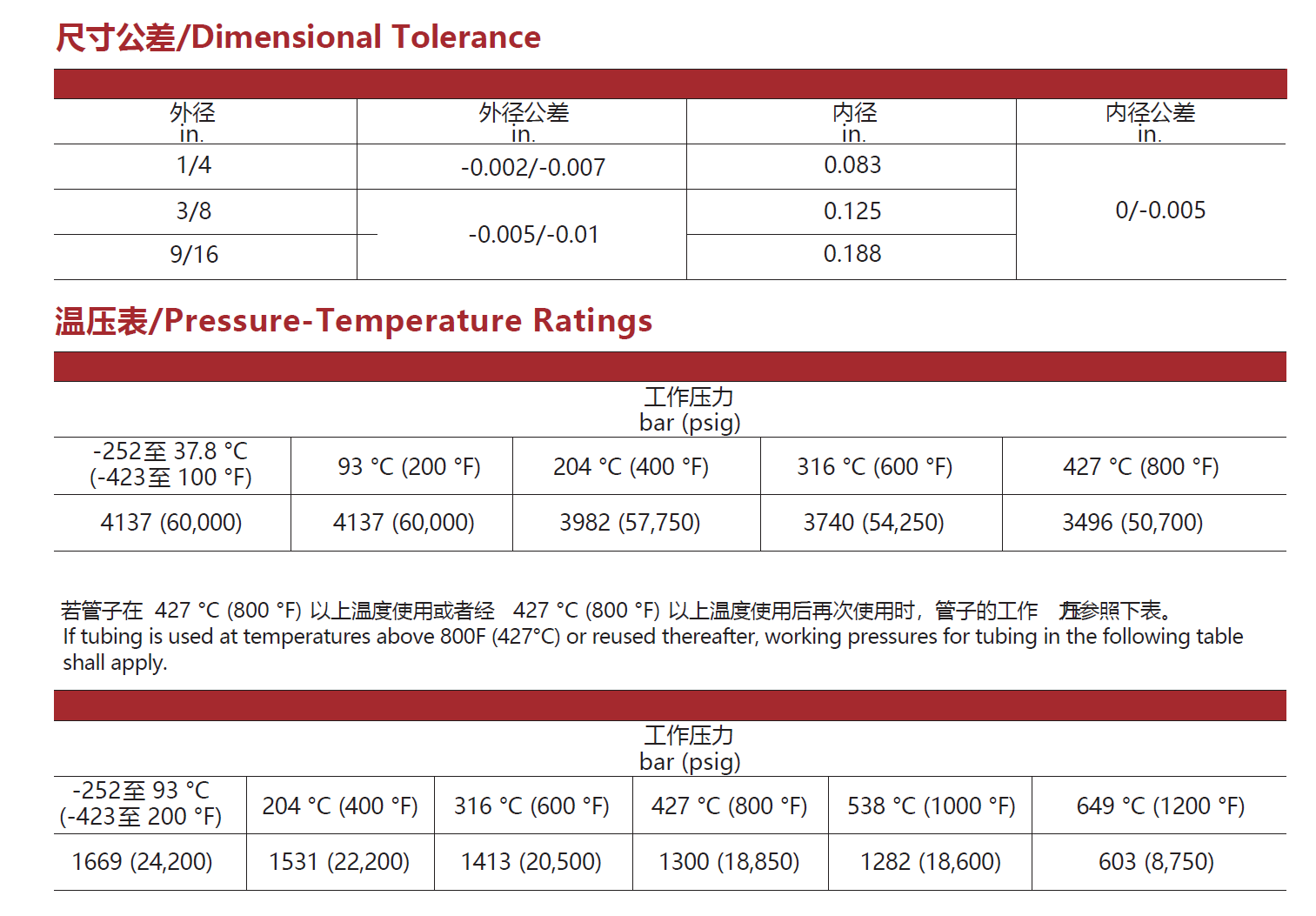

Materials: 316/316L,enhanced-316/316L

Working pressure up to 60,000 psig (4137 bar)

Working temperature:-423°F to1200°F(-252°C to 649°C)

Cold-drawn seamless tubing

Standard length: 40 in, 80 in, 10 ft, 20 ft, 1 m, 2 m, 3 m and 6 m,

Straight-length tubing and coned and threaded nipples in custom

length are also available. T60H Series(图1) T60H Series.pdf
